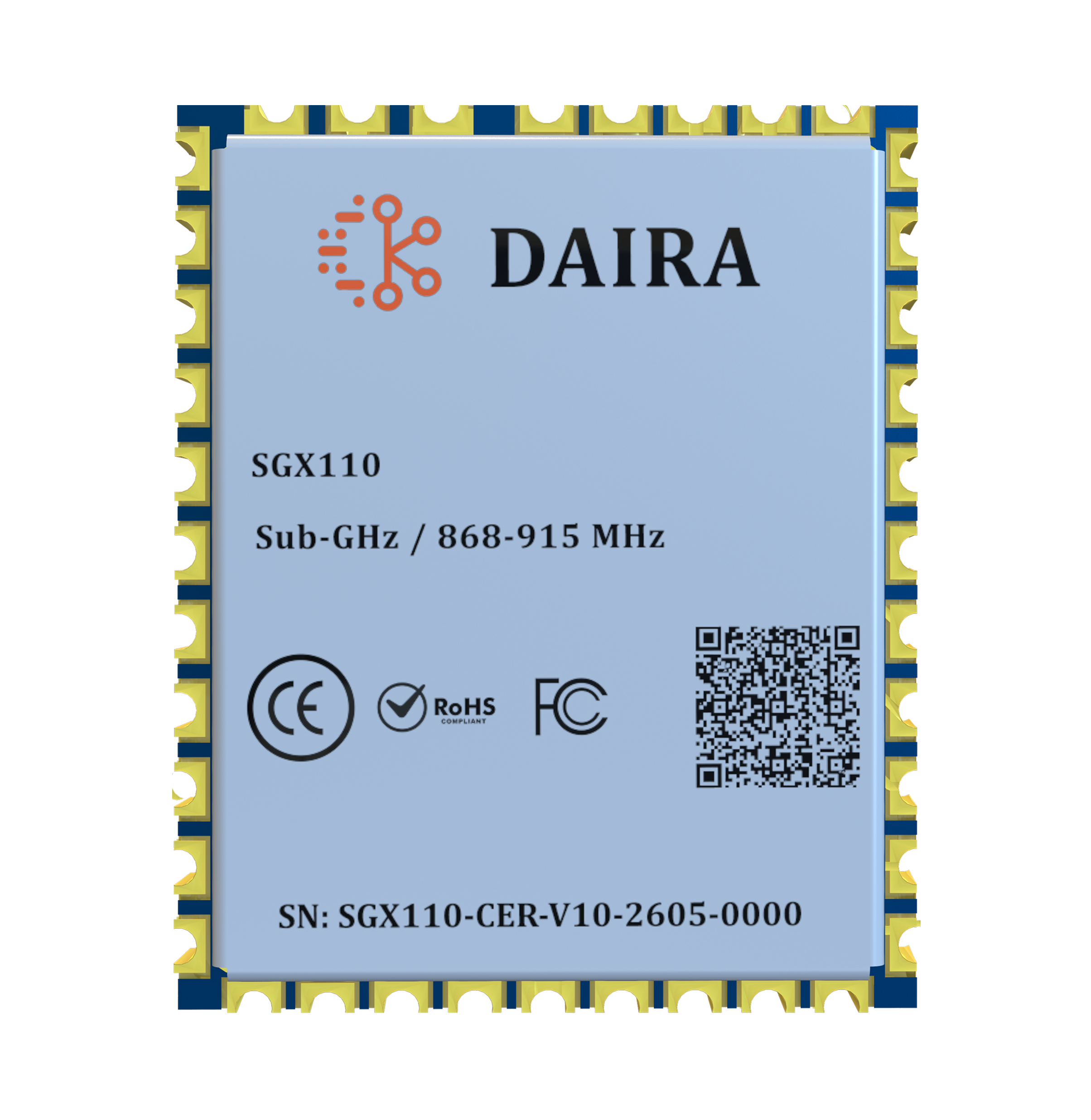

SGX110 LPWAN Module (Ceramic Antenna) (SGX110-CER)
STM32WL33 · Cortex-M0+
Sub-GHz LPWAN radio
256 KB Flash · 64 KB RAM
Integrated ceramic antenna
Fewer cables · faster mechanics
UART · SPI · ADC · GPIO
Compact drop-in module
Same platform as SGX110The same STM32WL33 Sub-GHz LPWAN production module as SGX110, with an integrated ceramic antenna so compact hosts ship without an external IPEX lead, coax run, or antenna connector stack-up.

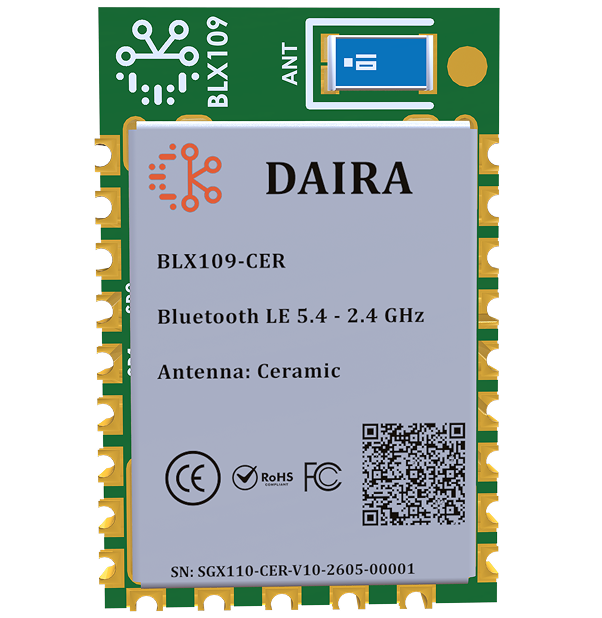

BLX109 BLE Module (Ceramic Antenna)
15.6 × 12 mm footprint
Bluetooth LE 5.4
STM32WB09 · 512 KB / 64 KB
Integrated ceramic antenna
Maximum integration · min volume
Castellated SMT
4-layer · IPD · Faraday shield

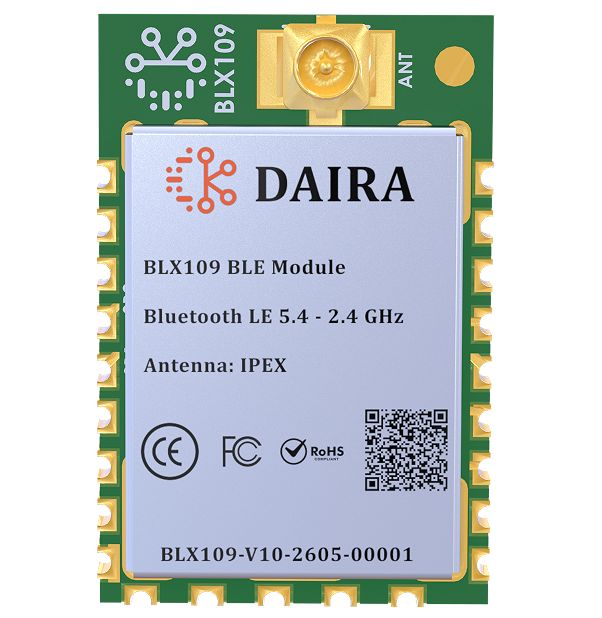

BLX109 BLE Module (IPEX)
15.6 × 12 mm footprint
Bluetooth LE 5.4
STM32WB09 · 512 KB / 64 KB
IPEX external antenna
Castellated SMT
4-layer · IPD · Faraday shield
Ultra-low sleep · hardware crypto

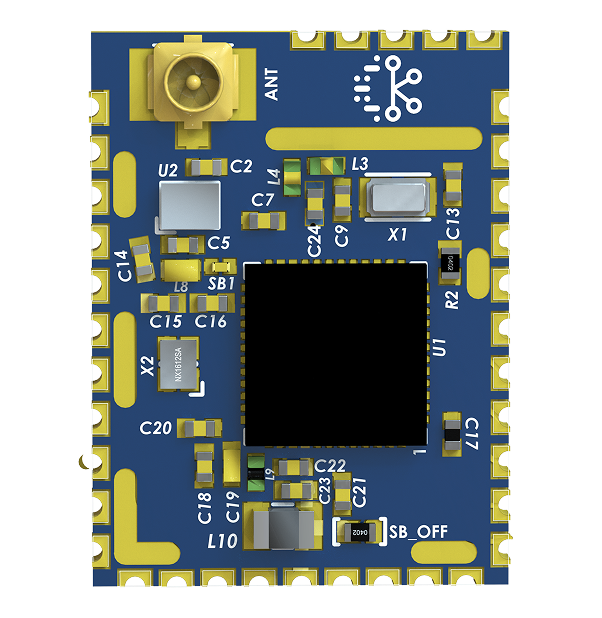

SGX110 LPWAN Module (IPEX) (SGX110)
STM32WL33 · Cortex-M0+
Sub-GHz LPWAN radio
256 KB Flash · 64 KB RAM
IPEX external antenna
Long range · low power
UART · SPI · ADC · GPIO
Production drop-in module
The same ultra-compact 15.6 × 12 mm Bluetooth LE 5.4 module on STM32WB09, with an integrated ceramic antenna for the smallest wearable shells, so you ship without an IPEX lead, coax run, or antenna connector stack-up.
Your next wearable should not start with a year of RF layout. BLX109 is Daira’s ultra-compact Bluetooth LE 5.4 module for teams who need idea-to-product speed without giving up signal integrity: STM32WB09 inside, 15.6 × 12 mm outside, castellated edges that go from breadboard carrier to reflowed product without redesigning the footprint.
A compact Sub-GHz LPWAN module on STM32WL33, MCU and long-range radio in one production footprint, with an IPEX connector so you can attach the external antenna your enclosure and range budget actually need.
