A.I.M Web Dashboard
Farm & field mapping
Crop & irrigation-line management
Live sensor / valve telemetry
Irrigation schedules
Gateway & node hardware hub
Weather API + on-farm stations
Alerts & team tasks
Role-based team accessThe browser command center for the connected farm, map fields and crops, watch live valves and sensors, run irrigation schedules, manage gateways and nodes, and keep weather, alerts, and team access in one place for ArborGate, ArborValve, and ArborSense.
A.I.M Mobile Application
Field ops on iOS / Android
Live sensor / valve telemetry
Irrigation schedules & control
Farm & crop visibility
Hardware UUID · QR · barcode
Weather & alerts on the go
Tasks & team coordination
ArborSense S1 (AM-S1)
Highest I/O density in ArborLink
RS232 / RS485 Modbus
SDI-12
3× voltage + 3× 4–20 mA
Up to 3× isolated digital inputs
5 / 12 / 24 V sensor excitation
Long-range LPWAN · Bluetooth · GNSS
ArborValve AC (AM-VA1)
Hybrid with ArborValve DC
GNSS positioning
Long-range LPWAN field radio
External AC switching
Modbus · SDI-12 · local sensing
Bluetooth setup & diagnostics
Dual AC valve channels

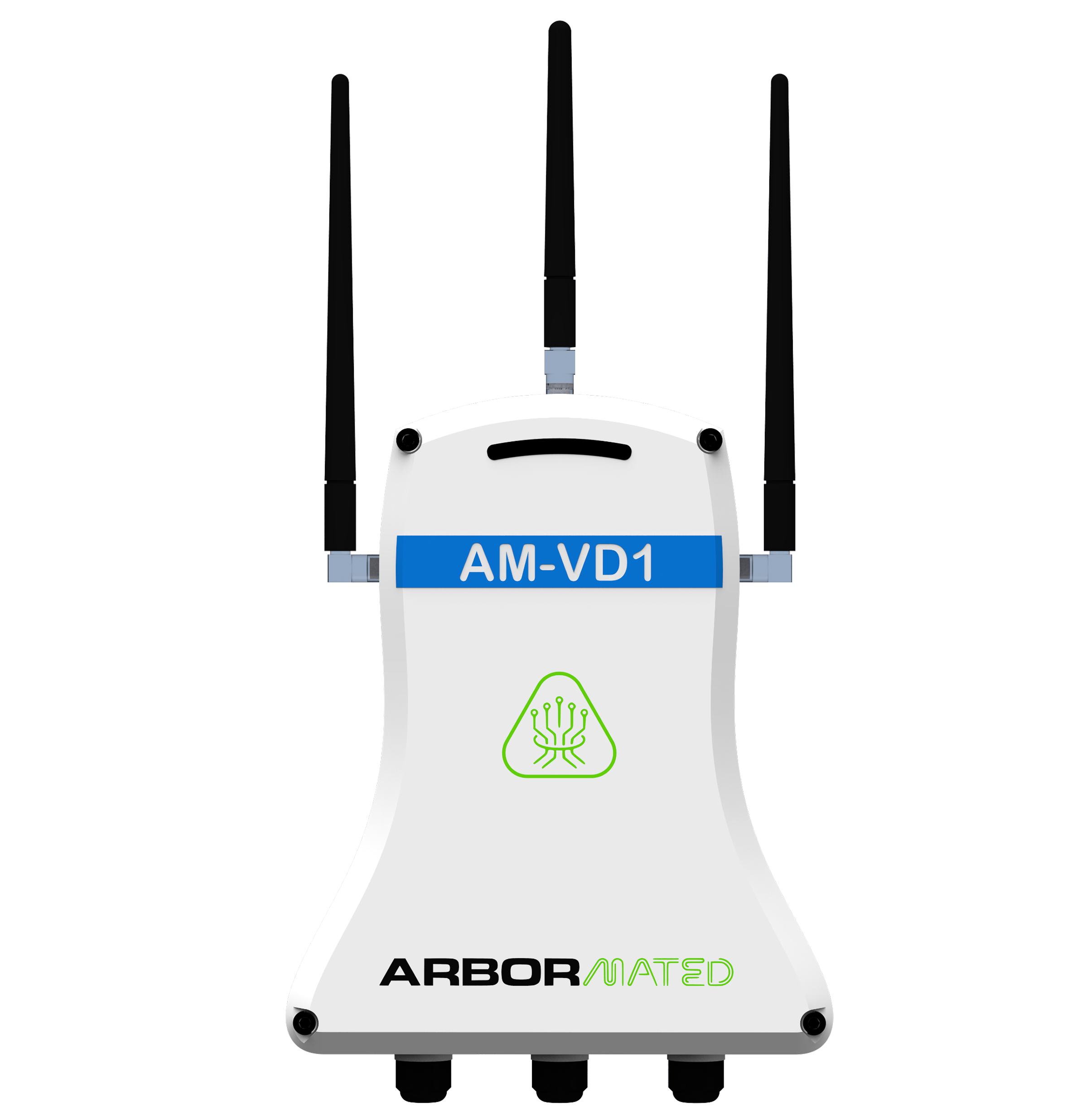

ArborValve DC (AM-VD1)
Dual DC valve control
Latching & non-latching solenoids
~6.5–24 VDC adjustable drive
Long-range field radio · up to 2 kmA wireless valve radio that only opens and closes a solenoid leaves growers guessing. ArborValve DC is a complete field actuator: it drives DC and DC-latching valves, reads pressure, flow and switch feedback at the valve post, speaks SDI-12 and Modbus to local instruments, and runs from a solar-charged LiFePO4 energy system, without trenching control wire across the block. Long-range Sub-GHz LPWAN keeps the node on the farm mesh, while Bluetooth supports setup and nearby diagnostics, and GNSS places it accurately on the map. Register the node in A.I.M Hardware (Type UUID · Scan QR · Scan barcode), assign it under its gateway, locate it on the map, push OTA updates, and run schedules from A.I.M Web or Mobile, with IP67 protection built for real laterals, orchards, and seasonal moves.

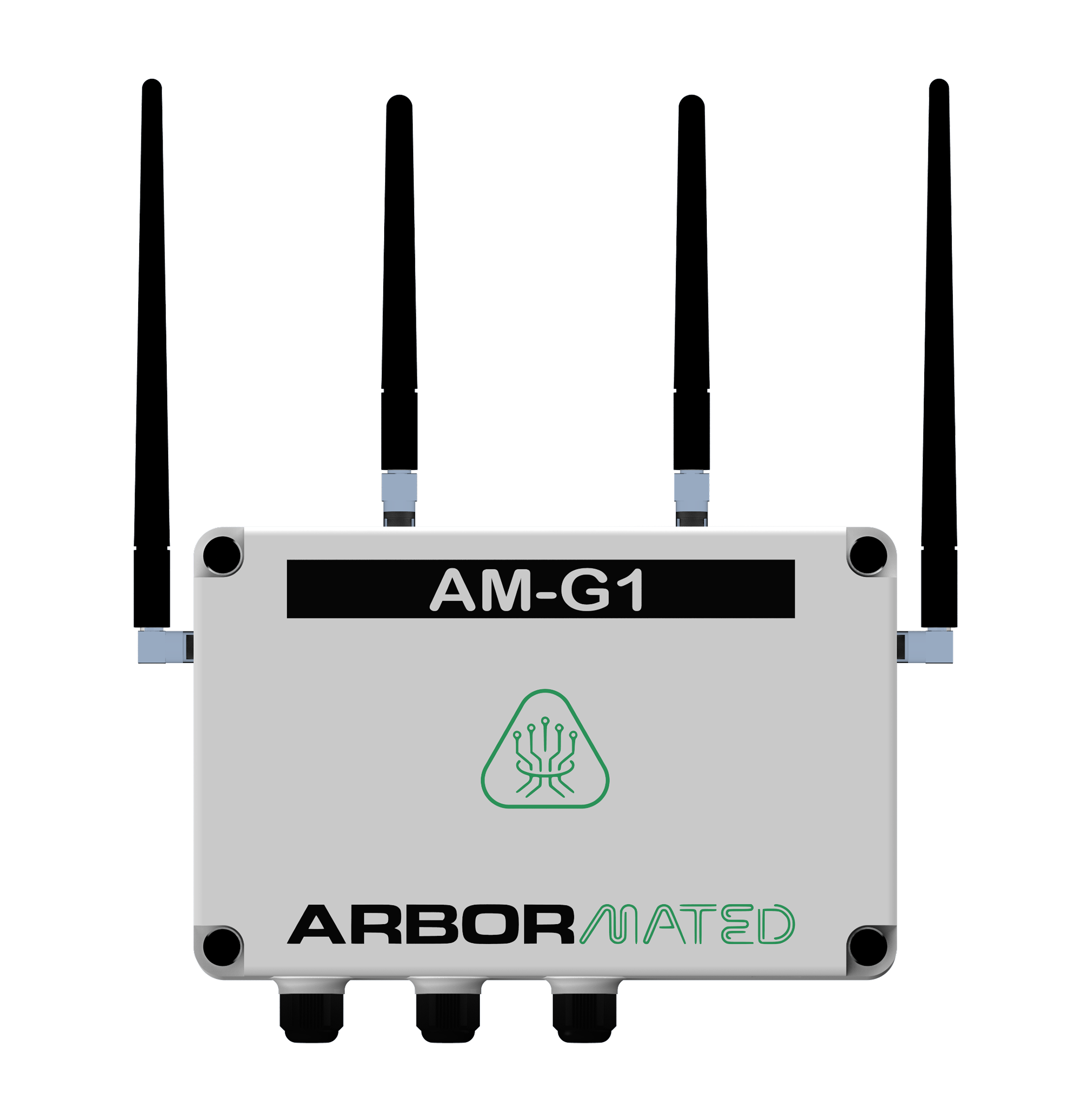

ArborGate G1
LoRaWAN Mesh
Dual-core application processor
Wi-Fi · Ethernet · cellular LTE
Bluetooth setup & diagnostics
GNSS positioning
RS485 Modbus pump / VFD controlPremium card description Estate-scale irrigation head-end with dual-core application compute and a Sub-GHz LPWAN mesh toolchain rated for 1000+ field nodes. Orchestrates valve, sensor, and pump companions, supervises VFD/electric pump delivery, and sustains cloud-grade telemetry — with offline edge orchestration when uplink is unavailable.
Synced with Web DashboardThe browser command center for the connected farm, map fields and crops, watch live valves and sensors, run irrigation schedules, manage gateways and nodes, and keep weather, alerts, and team access in one place for ArborGate, ArborValve, and ArborSense.
The farm’s universal sensing node, bring soil, weather, filter, flow, and tank instruments onto the long-range network with Modbus, SDI-12, rich analog and digital inputs, and controlled sensor power, then watch them live on A.I.M with ArborGate.
AC valve automation for powered irrigation sites, supply low-voltage AC solenoids from the node’s own battery energy path (12–24 VAC at up to 1 A), or switch higher-voltage valve banks from an external supply (up to 250 VAC / 10 A), on the same long-range farm network as ArborValve DC.
