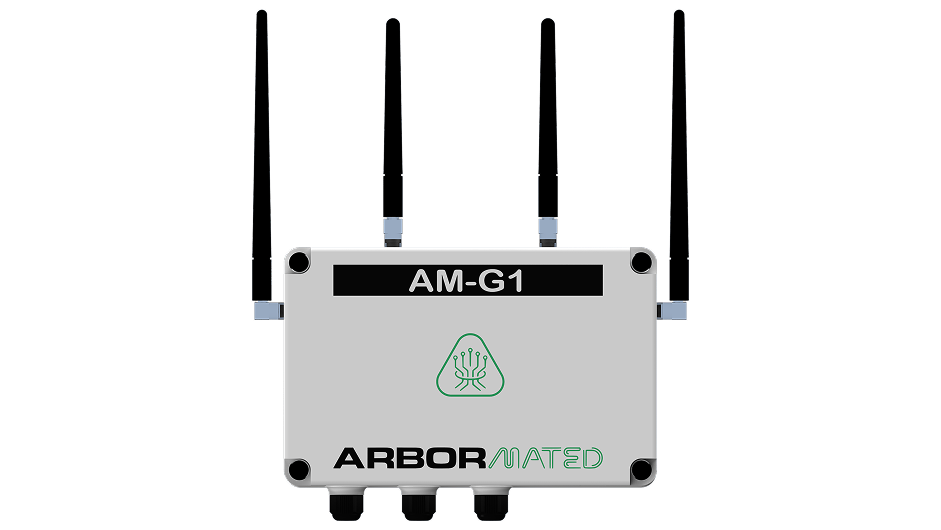

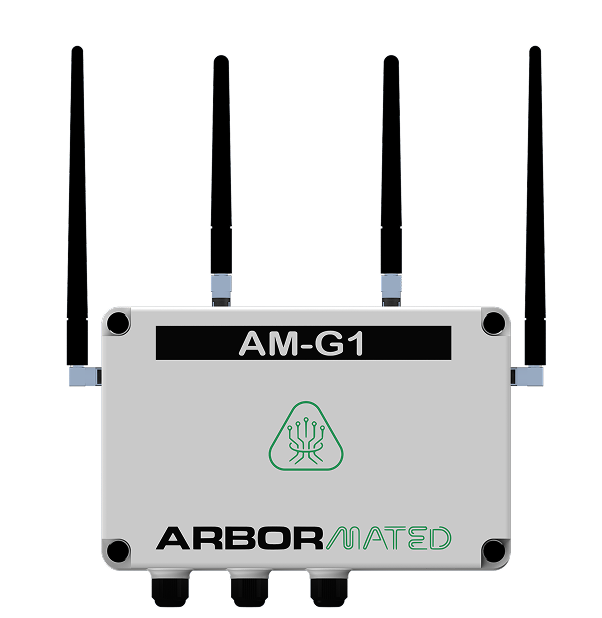

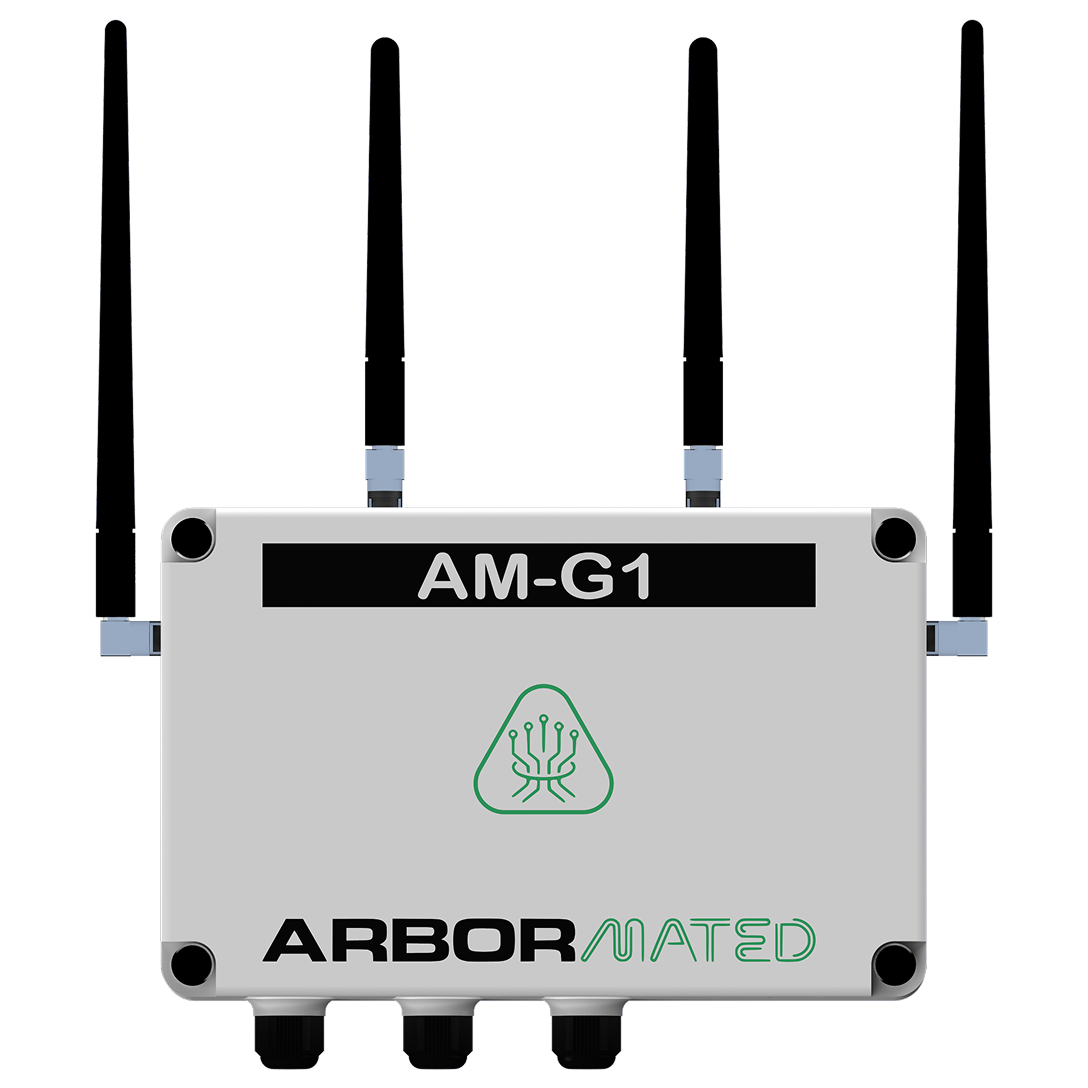

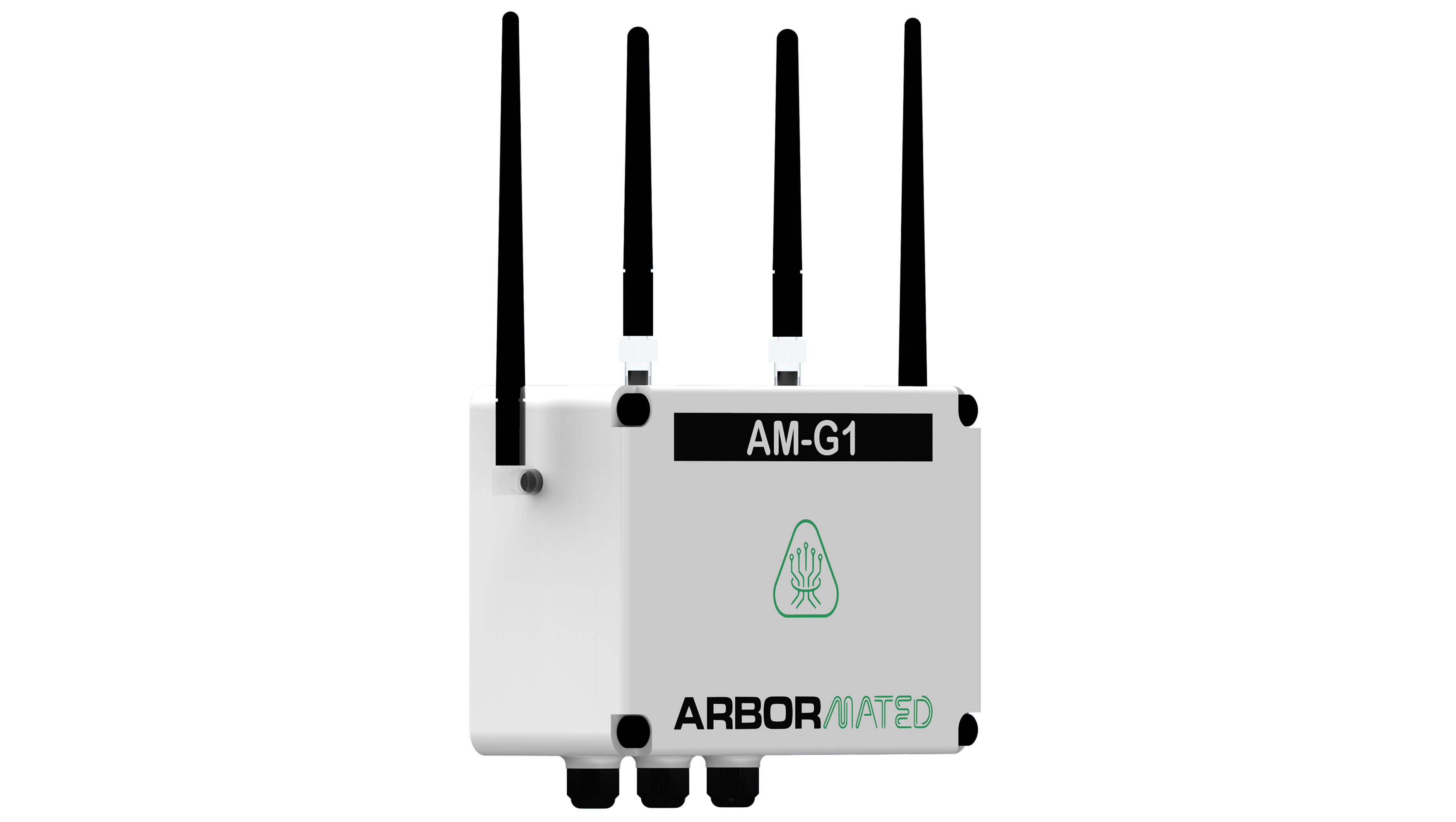

ArborGate G1

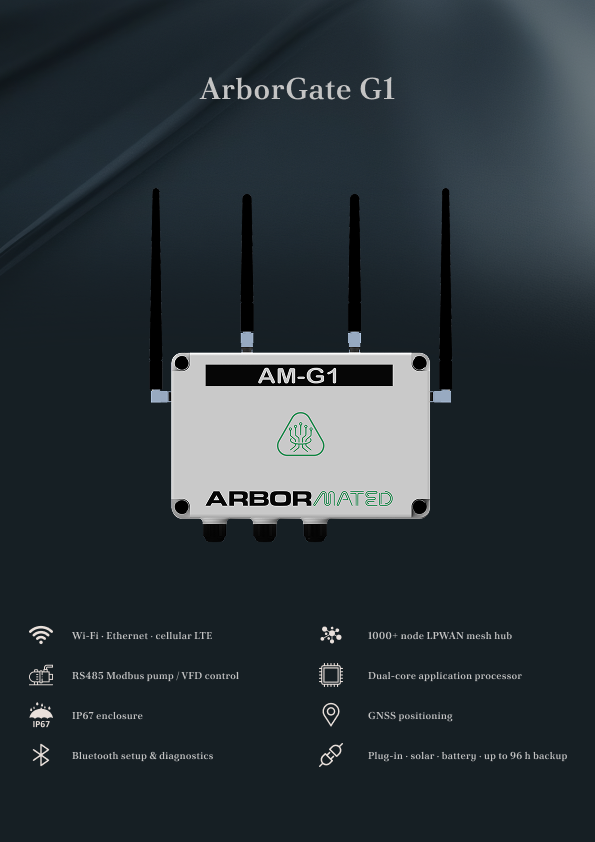

IP67 farm network hub with dual-core edge compute and a Sub-GHz LPWAN mesh toolchain — designed for 1000+ field nodes, multi-path cloud backhaul (Wi-Fi · Ethernet · cellular LTE), RS485 Modbus pump/VFD control, and flexible power: plug-in, solar, or onboard battery with up to 96 hours backup.

1000+ node LPWAN mesh hub
Dual-core application processor
Wi-Fi · Ethernet · cellular LTE
Bluetooth setup & diagnostics
GNSS positioning
RS485 Modbus pump / VFD control
Plug-in · solar · battery · up to 96 h backup

Buried wire faults. Unreachable pump houses. Controllers locked to one vendor’s radios. Large farms lose hours to infrastructure that is difficult to access, expand, and integrate. ArborGate G1 is the field hub that ends that fragmentation: it builds a long-range wireless mesh for valve, sensor, and asset-management nodes (including hardware that hooks to farm machinery for tracking and dashboard visibility), connects upstream through Wi-Fi, Ethernet or cellular LTE, and commands pump VFDs through industry-standard Modbus — one gateway for network, pump infrastructure, and the A.I.M platform.

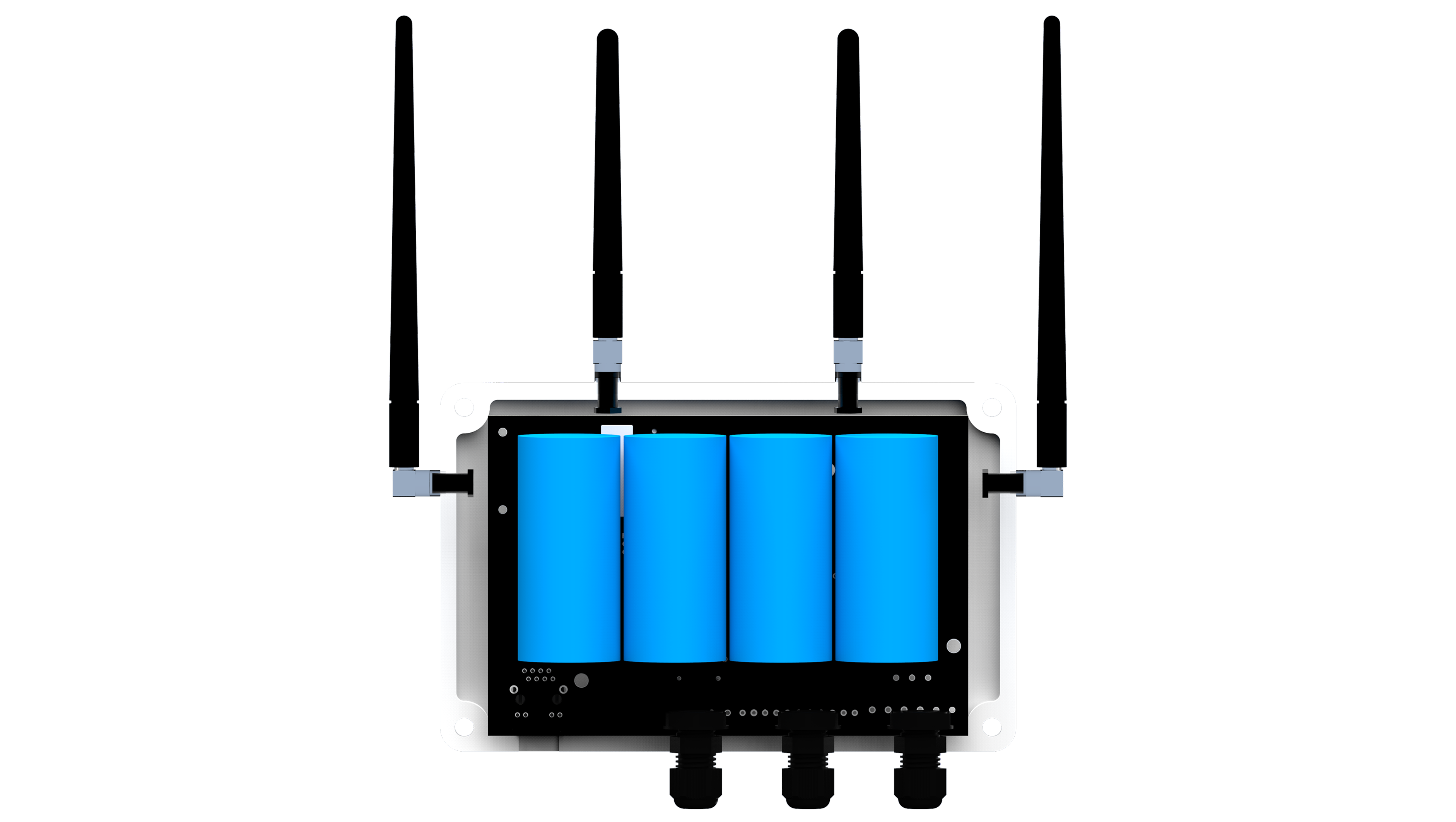

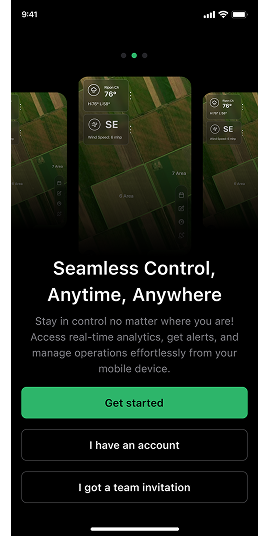

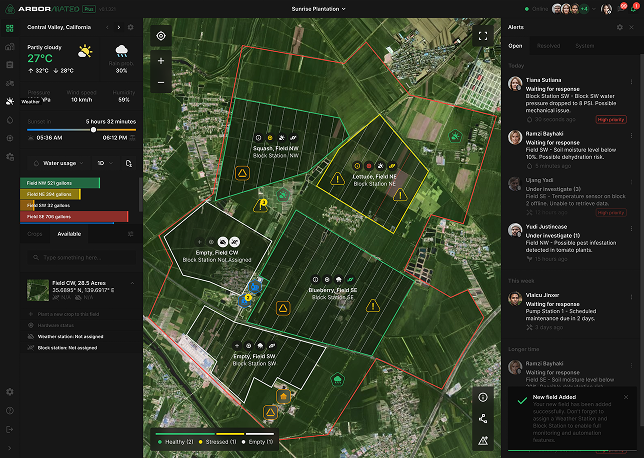

Dual-core application-class edge compute handles supervision, uplink services, and local resilience, while a dedicated Sub-GHz LPWAN radio toolchain (STM32WL33 class) maintains mesh reliability across wide acreage. Power is built for field reality: onboard LiFePO4 battery, plug-in supply, or solar panel — including solar-only sites with no power port, and up to 96 hours of battery backup when power is shut down. On-device offline logging and OLED status keep G1 installer-ready — with IP67 protection for pump stations, orchard hubs, and hybrid connectivity sites. Register the gateway in A.I.M Hardware by Type UUID, Scan QR, or Scan barcode; configure uplink in a familiar IP-device style (Wi-Fi / LTE paths with DHCP or static IP, similar to how IP cameras join a site network); then push OTA updates and run the estate from Web or Mobile.

One gateway. Whole-farm control.

Long-range LPWAN mesh designed for 1000+ field nodes — valves, sensors, and asset-management nodes on farm machinery — from a single irrigation block to a full ranch, with Bluetooth for setup and nearby diagnostics.

Multi-path connectivity that matches the site

Backhaul is not a single gamble: Wi-Fi, Ethernet-class LAN, and cellular LTE, plus GNSS location and external SMA antennas for field radio, cellular, and positioning. Site join follows an IP-device pattern operators already know from cameras and NVRs — DHCP or static IP on the chosen uplink — so hybrid farms stay online the way the site allows.

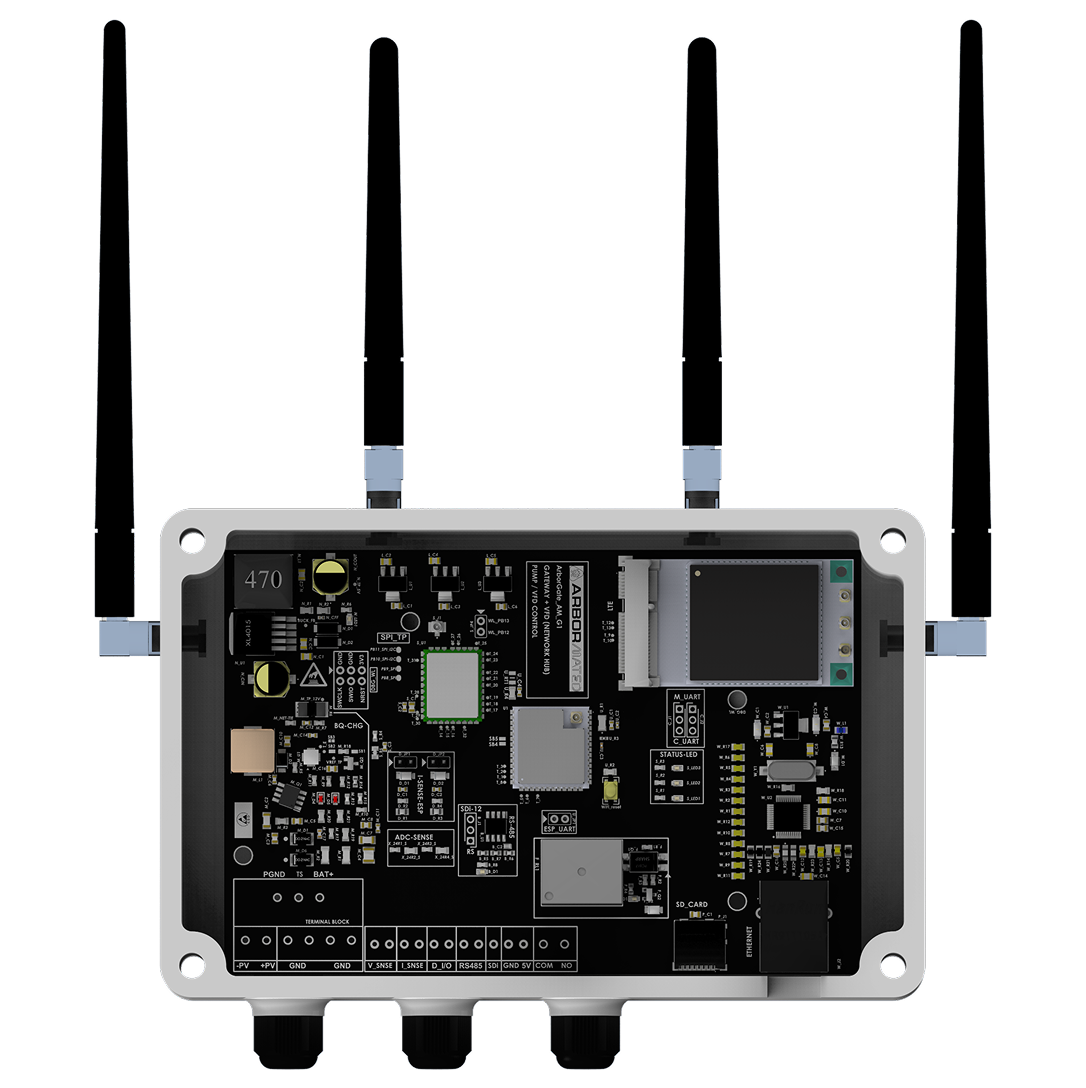

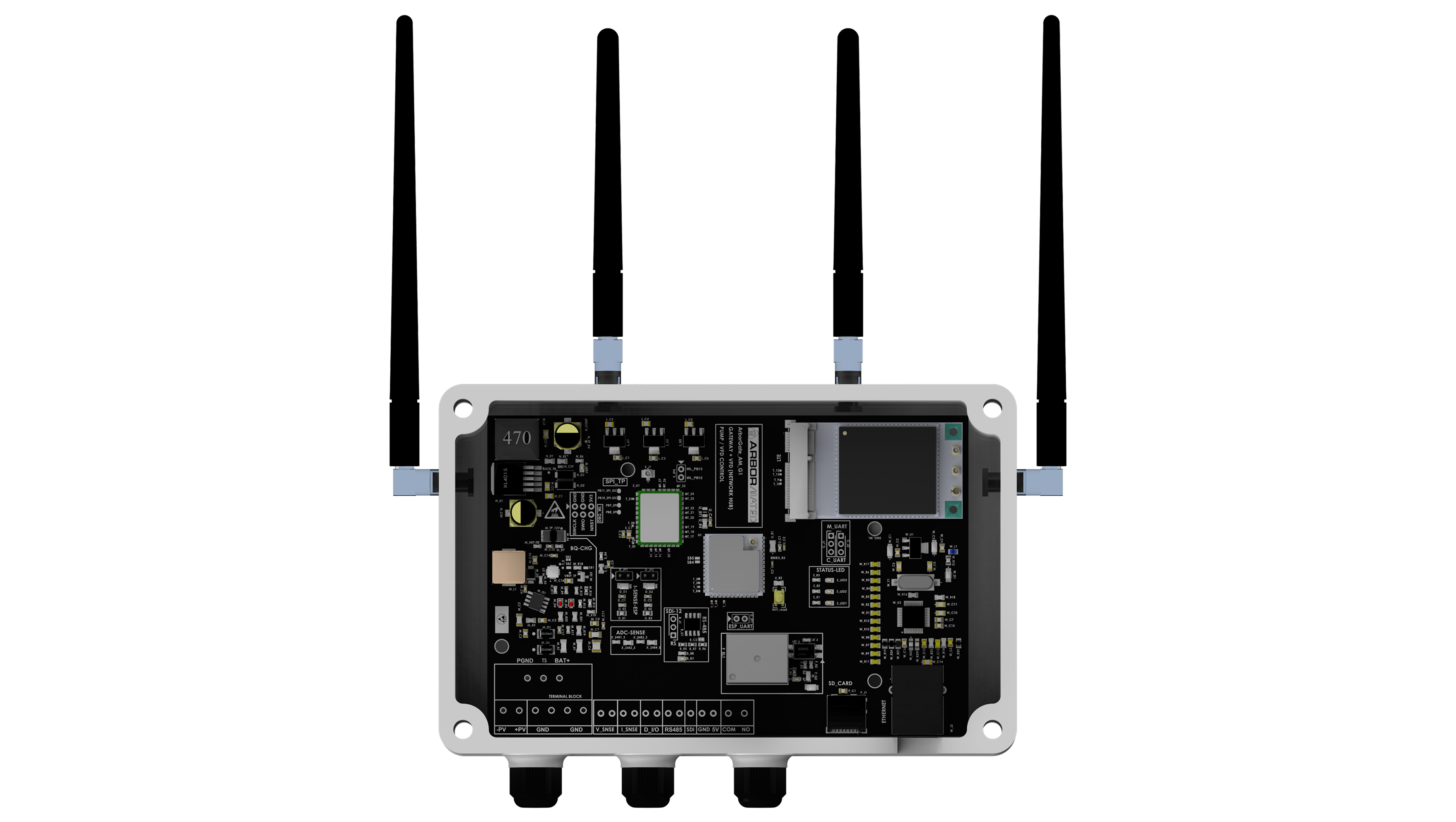

ArborGate G1 — Dual-core application compute handles supervision and uplink services while a dedicated Sub-GHz radio toolchain maintains mesh reliability across wide acreage. Industrial I/O, battery-managed power architecture, VFD supply control, and multi-sensor monitoring paths support deployers who need a field-ready head-end — not a laboratory prototype.
