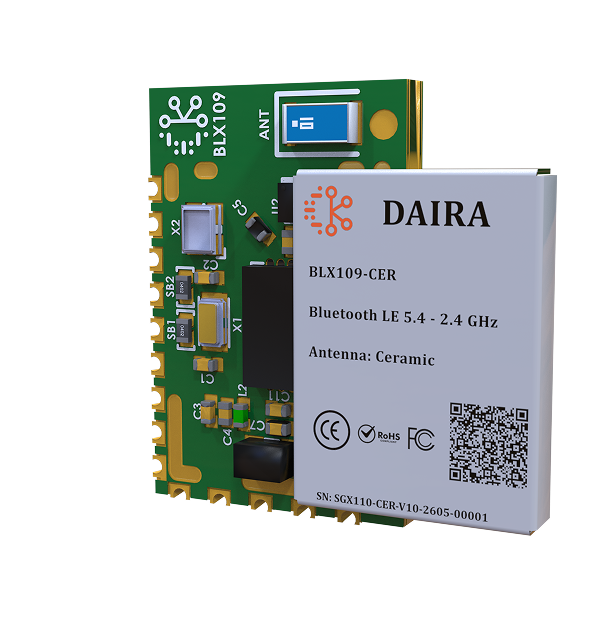

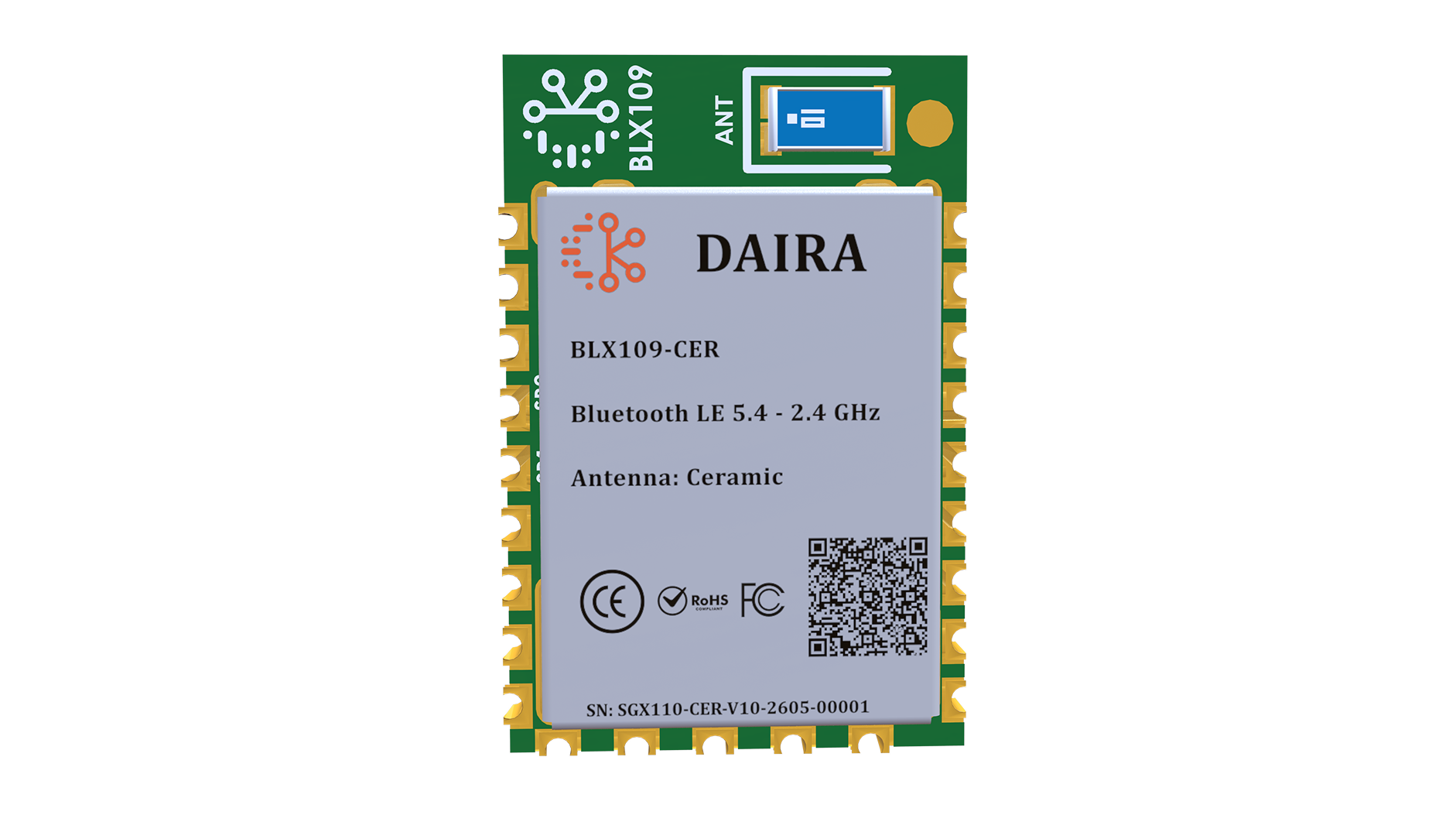

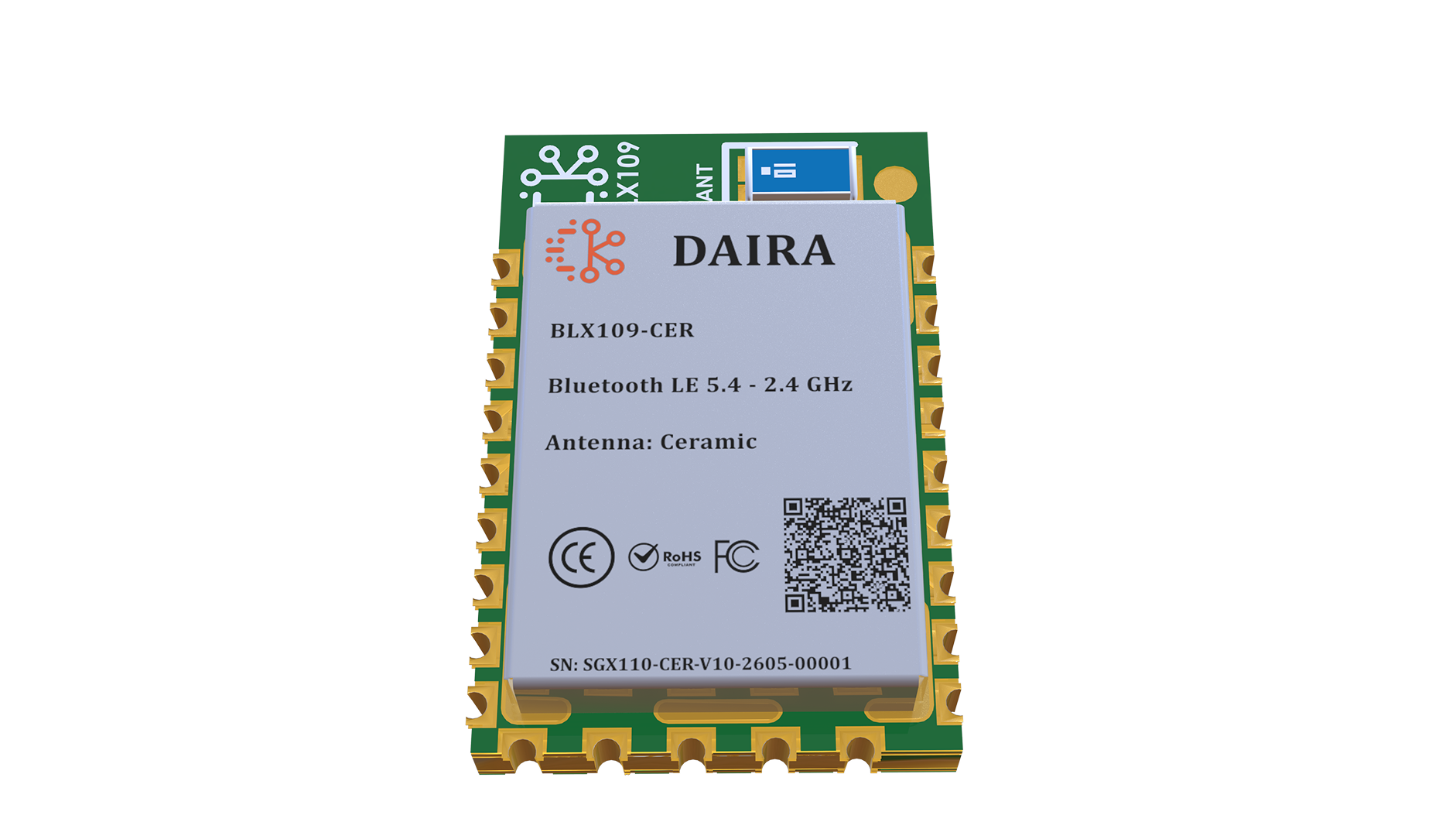

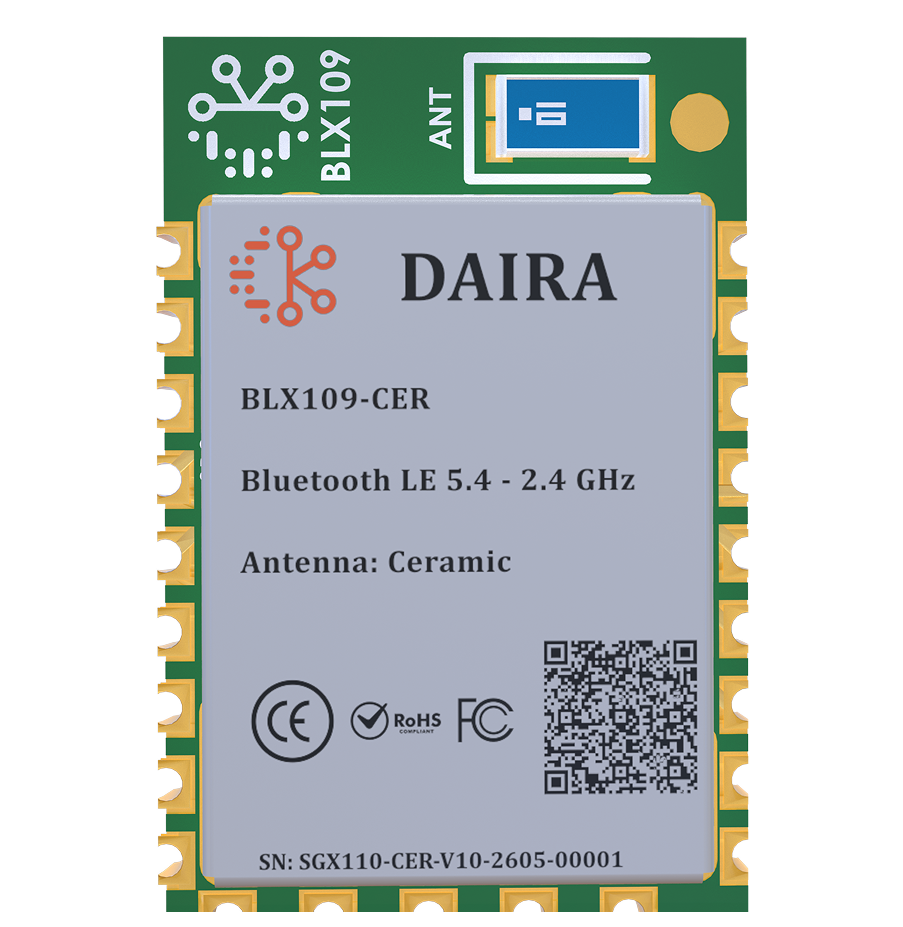

BLX109 BLE Module (Ceramic Antenna)
The same ultra-compact 15.6 × 12 mm Bluetooth LE 5.4 module on STM32WB09, with an integrated ceramic antenna for the smallest wearable shells, so you ship without an IPEX lead, coax run, or antenna connector stack-up.
15.6 × 12 mm footprint
Bluetooth LE 5.4
STM32WB09 · 512 KB / 64 KB
Integrated ceramic antenna
Maximum integration · min volume

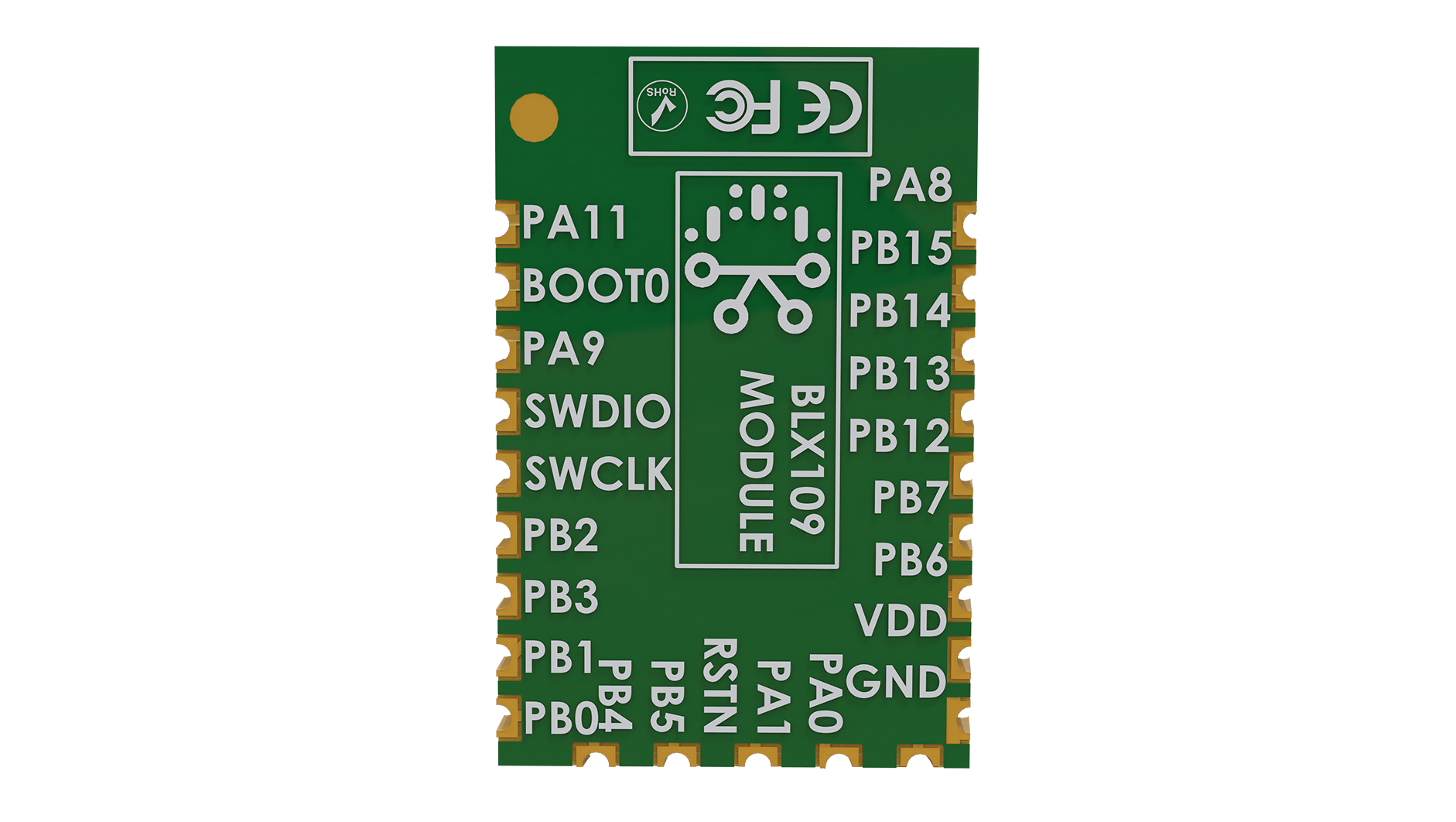

Castellated SMT
4-layer · IPD · Faraday shield
In wearables and portable BLE devices, every millimetre and every connector fights the industrial design. BLX109-CER keeps the proven BLX109 platform, STM32WB09, Bluetooth LE 5.4, castellated 15.6 × 12 mm footprint, 4-layer RF with IPD matching and Faraday shielding, and integrates a ceramic antenna so the radio and radiator live in one module. You still get 512 KB Flash, 64 KB RAM, modern LE feature set, ultra-low sleep, and hardware crypto. What you drop is the external IPEX lead and the mechanical tax of routing RF off-board. Ideal for RF-friendly plastic bands, tags, patches, and sealed portables where “antenna included” beats “antenna optional.” Share firmware and bring-up with BLX109; choose CER when shell volume and assembly simplicity win, IPEX when the radiator must leave the board.
BLX109 BLE Module (Ceramic Antenna) — maximum integration in minimum shell volume.
Specification
General
- Product nameBLX109 BLE Module (Ceramic Antenna)
- Product codeBLX109-CER
- RoleUltra-compact Bluetooth LE 5.4 production module with integrated ceramic antenna
- CategorySystem-on-Modules
- PlatformSTM32WB09KE class (VFQFPN32) — confirm exact BOM letter (KE/KT) per build
- Size15.6 × 12 mm
- Suggested priceInquire
Compute · BLE · radio
