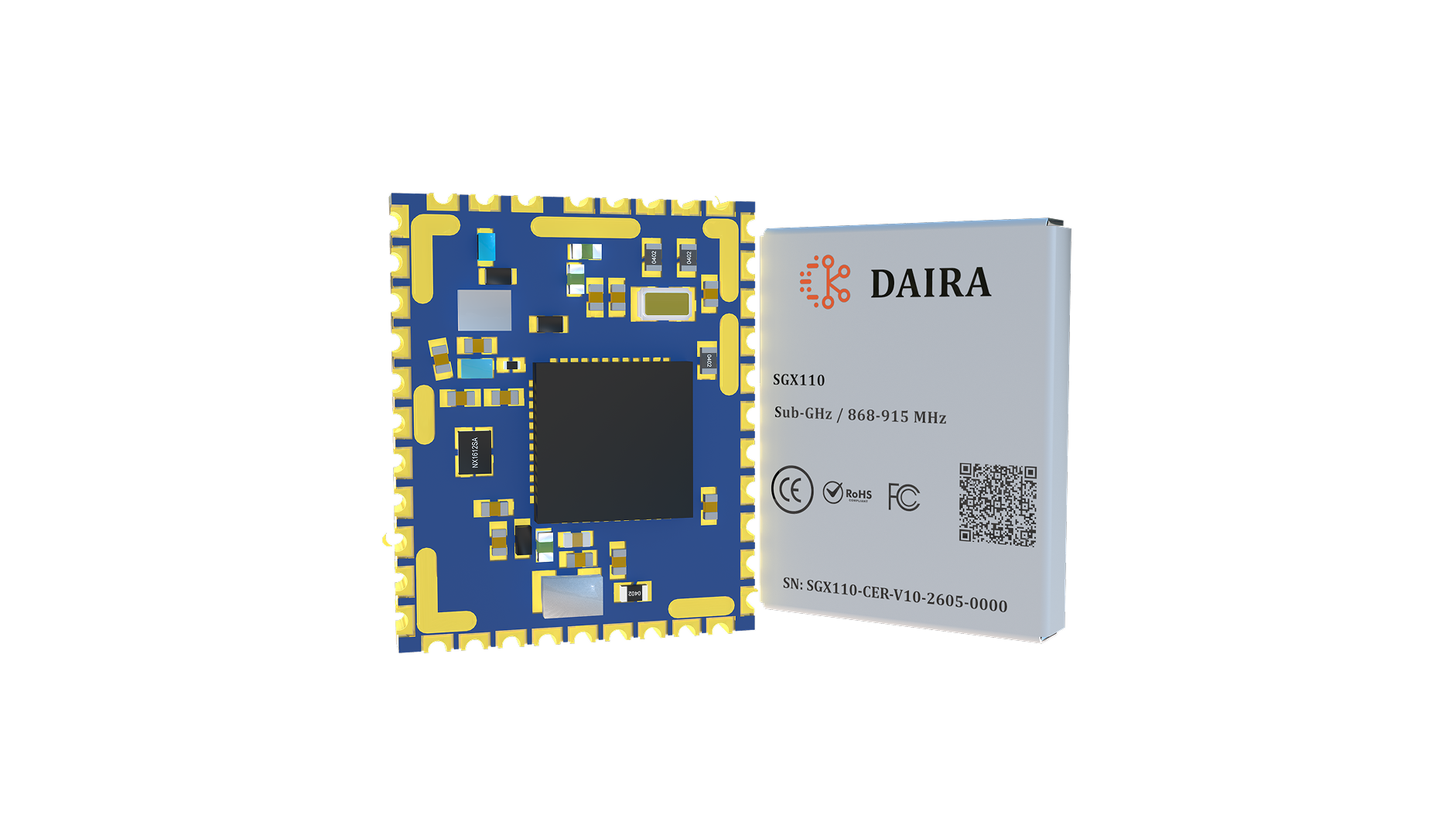

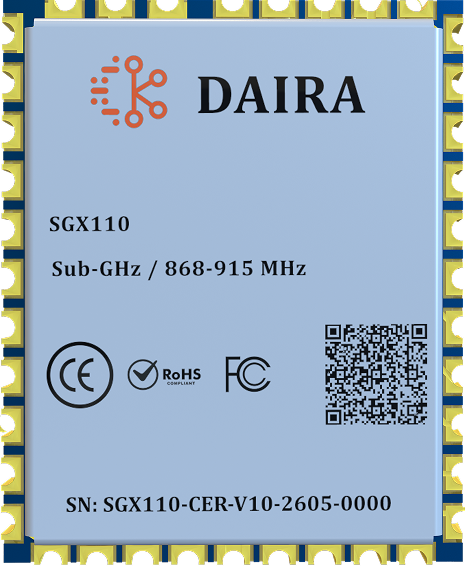

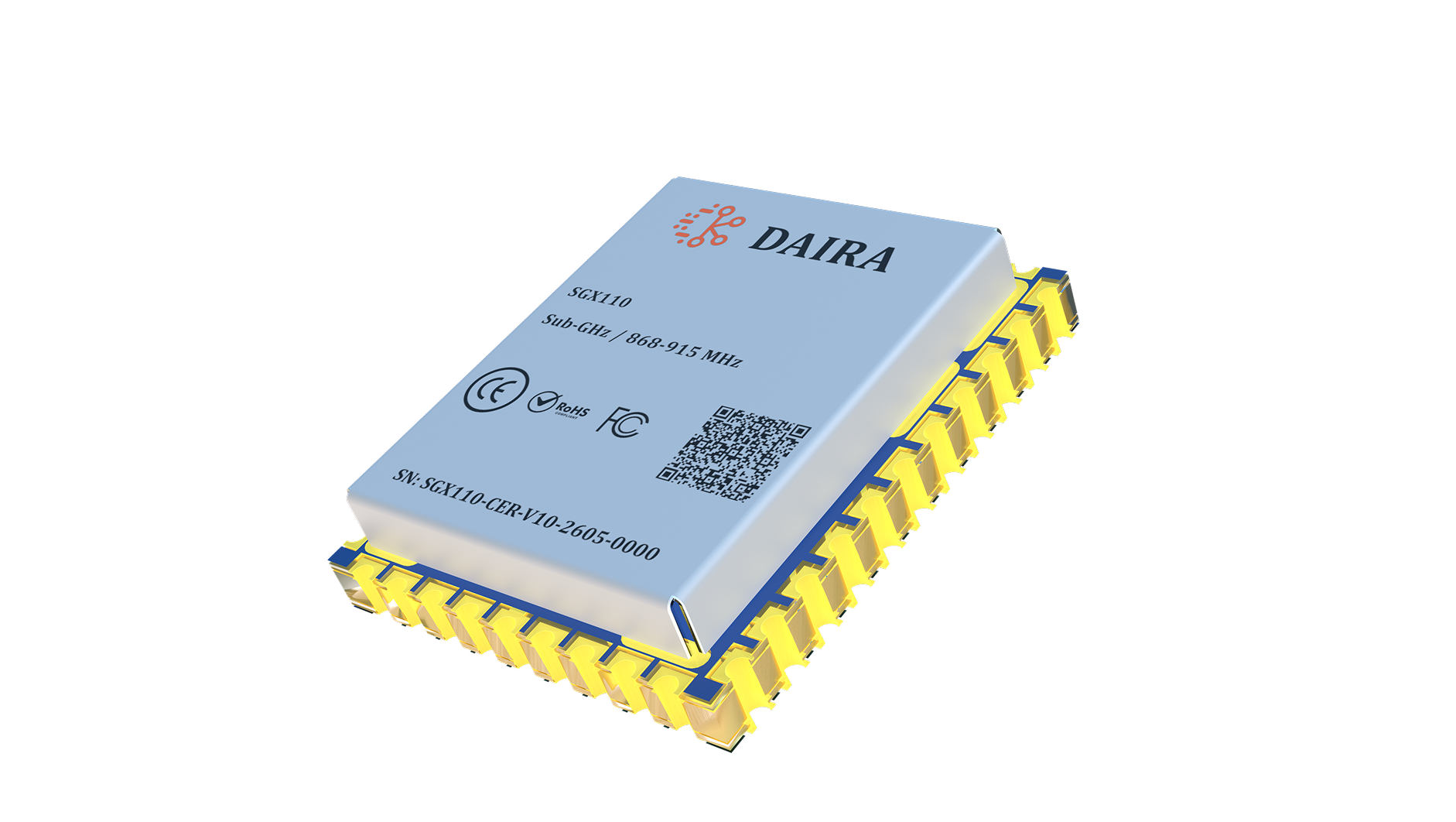

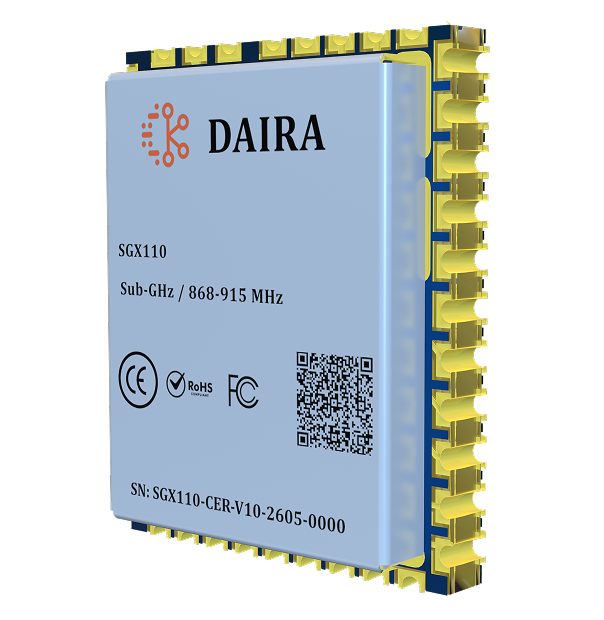

SGX110 LPWAN Module (Ceramic Antenna) (SGX110-CER)
The same STM32WL33 Sub-GHz LPWAN production module as SGX110, with an integrated ceramic antenna so compact hosts ship without an external IPEX lead, coax run, or antenna connector stack-up.
STM32WL33 · Cortex-M0+
Sub-GHz LPWAN radio
256 KB Flash · 64 KB RAM
Integrated ceramic antenna
Fewer cables · faster mechanics

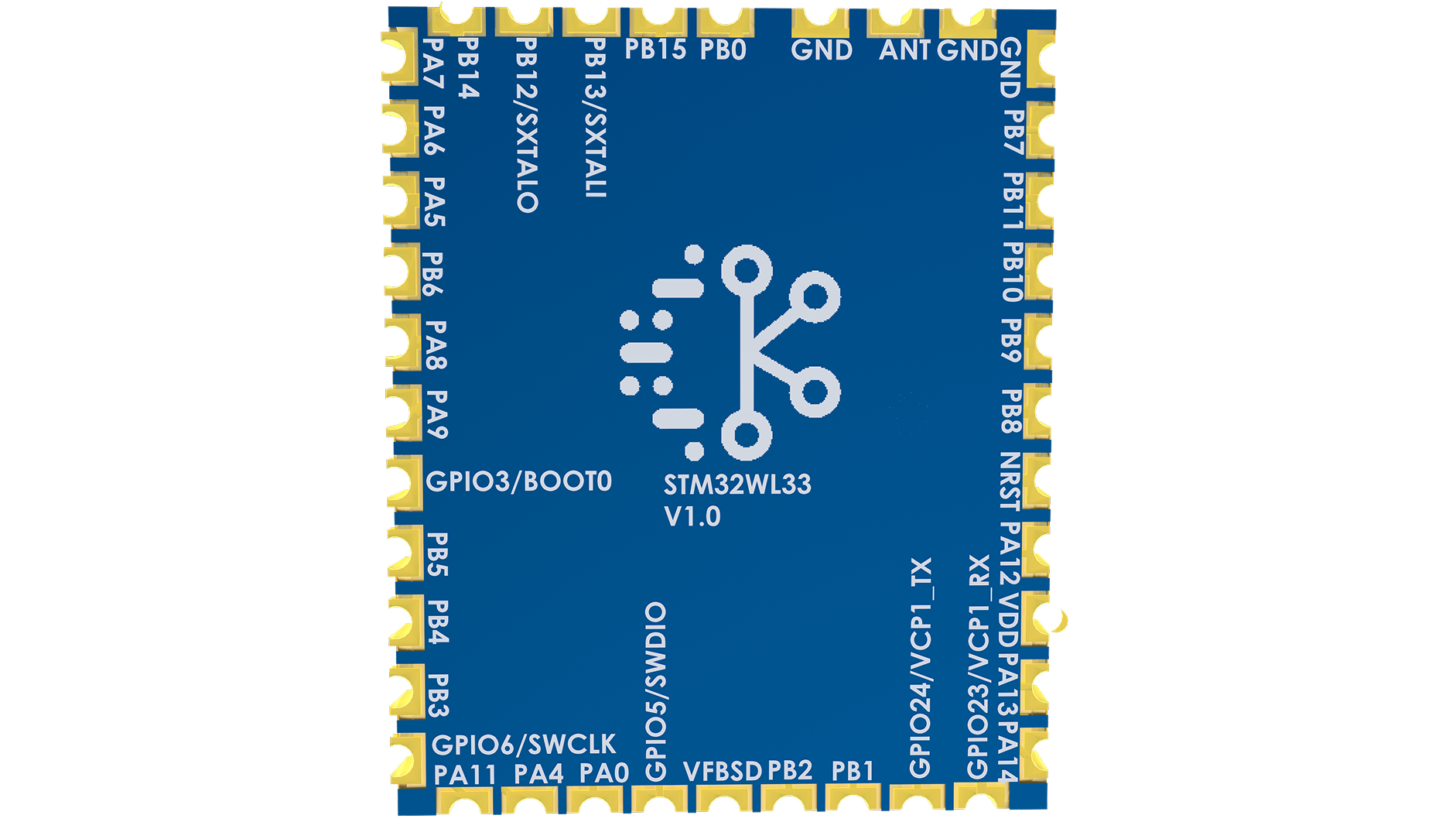

UART · SPI · ADC · GPIO
Compact drop-in module
Many IoT shells win on size and cost, and lose weeks wrestling antenna cables, connectors, and gasket cutouts. SGX110-CER keeps the proven SGX110 Sub-GHz LPWAN platform on STM32WL33 and swaps the RF exit for an integrated ceramic antenna: MCU, long-range radio, and radiator in one compact production footprint. You still get 256 KB Flash, 64 KB RAM, Sub-GHz LPWAN for long-range low-power links, and the familiar UART / SPI / ADC / GPIO integration path. What you drop is the external IPEX lead and the mechanical tax that comes with it. Validate on the shared SGX110-EVT ecosystem path, then drop SGX110-CER into RF-friendly plastic enclosures where onboard ceramic is the cleanest answer. Same case-study-backed engineering family as SGX110, choose CER when volume and simplicity beat cable flexibility.
SGX110 LPWAN Module (Ceramic Antenna) (SGX110-CER) — fewer cables, faster mechanical integration, same Sub-GHz LPWAN platform.
Specification
General
- Product nameSGX110 LPWAN Module (Ceramic Antenna)
- Product codeSGX110-CER
- RoleProduction Sub-GHz LPWAN module with integrated ceramic antenna
- CategorySystem-on-module
- PlatformSTM32WL33CC (STM32WL33 family) — same core as SGX110
- Suggested priceinquire
- Case studyhttps://www.dairaengineering.com/caseStudy/69f3001cdf48db789125e393
Compute · memory · radio
